PRODUCT INTRODUCTION

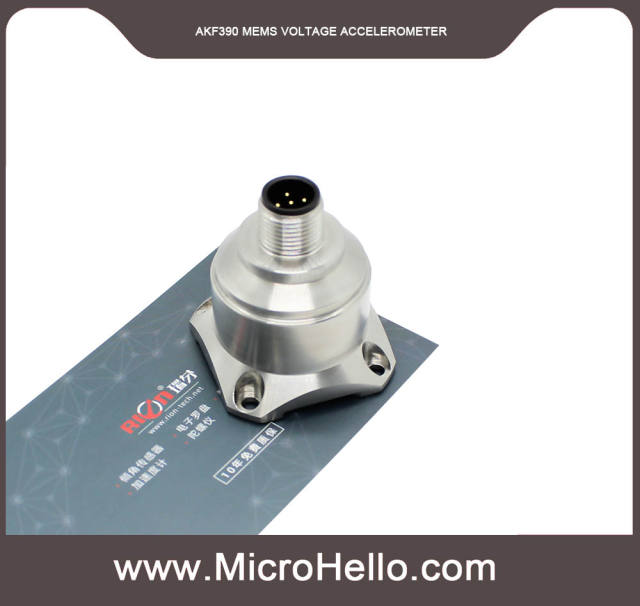

AKF390B three-axis accelerometer is a widely used accelerometers produced by RION's with patented Swiss technology. It can be used in vibration testing, impact testing and other fields.The product adopts analog voltage output, different address codes can be set, and multiple sensors are used together in long distance to facilitate multi-point measurement and data analysis. The AKF392B is a monocrystalline silicon capacitive sensor consisting of a micromachined silicon chip (a low-power ASIC for signal conditioning), a microprocessor for storing compensation values, and a temperature sensor. This product with low power consumption has been calibrated, and has a solid structure and stable output. The new electronic configuration provides solid-state power for reset, providing full protection for over-current.This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability.
▶ PRODUCT FEATURES
★ three axis (X、Y、Z) ★ output voltage: 0-5V
★ power supply：9-36V ★ anti-impact：2000G
★ working temperature: -40°C ~ +85°C ★ store temperature: -55°C ~ +100°C
★ size: L34.3×W34.3×H38.5mm ★ weight: 73.5g
★ excellent bias stability
★ Good environmental performance (impact, vibration and temperature)
▶ APPLICATION
★ Crash record, fatigue monitoring and prediction ★ Wind power generation
★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection
★ Large machinery, engine
★ Low frequency vibration and automatic monitoring ★ Medical equipment
★ Bridge ★ Vehicle ★ Road roller
PRODUCT PARAMETERS
| Range |
±2 |
±4 |
±8 |
±10 |
±20 |
±40 |
g |
| Deviation Calibration |
<1 |
<1 |
<1 |
<1 |
<1 |
<1 |
mg |
| Measuring Axial |
X,Y,Z |
X,Y,Z |
X,Y,Z |
X,Y,Z |
X,Y,Z |
X,Y,Z |
Axis |
| Up/Off Power Repeatability |
<2 |
<2 |
<2 |
<2 |
<2 |
<2 |
mg(max) |
| Sensitivity (± 10%) |
1250 |
625 |
312.5 |
250 |
125 |
62.5 |
mv/g |
| Deviation temperature coefficient |
0.01 |
0.01 |
0.01 |
0.05 |
0.05 |
0.05 |
%/℃ |
| Resolution/Threshold (@ 1Hz) |
< 1 |
< 1 |
< 1 |
< 1 |
< 1 |
< 1 |
mg(max) |
| Nonlinearity |
<0.5 |
<0.5 |
<0.8 |
<1 |
<1 |
<1 |
% FS（max） |
| Frequency response |
500 |
500 |
500 |
500 |
500 |
500 |
Hz |
| Bandwidth (3Db)） |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
Hz |
| Cross-axis sensitivity |
1 |
1 |
1 |
2 |
2 |
2 |
% |
| Lateral vibration sensitivity ratio |
1 |
1 |
2 |
5 |
5 |
5 |
% |
| Resonance frequency |
2.4 |
2.4 |
2.4 |
5.5 |
5.5 |
5.5 |
kHz |
| noise density |
21 |
21 |
21 |
86.6 |
86.6 |
86.6 |
μg/√Hz |
| 0g output 2.5V |
<0.01 |
<0.01 |
<0.01 |
<0.008 |
<0.008 |
<0.008 |
mV |
| The output voltage |
0~5V |
| Reliability |
MIL-HDBK-217，Grade 2 |
| Shock Resistance |
100g@11ms、Triaxial And Identical (Half Sine Wave) |
| Recovery Time |
<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis) |
| Vibrate |
20g Rms,20~2000Hz (Random Noise ，o ,p,i Per Axis For Action 30 Minutes ) |
| Input（Vdd_Vss） |
9-36 VDC |
| Current Consumption |
<60mA @ 12 VDC |
| Connector |
Industrial Standard M12 Connector |
| Weight |
73.5g |
| Dimension |
34.3*34.3*38.5mm |
